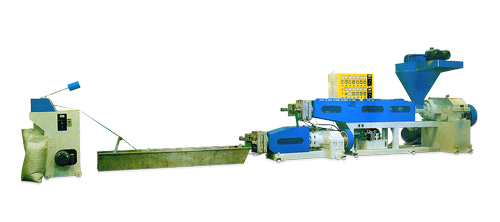

Double Degasification Granule-making Machine For Treatment of Plastic waste
SM-RC100TS
Double Degasification Granule-making Machine For Treatment of Plastic waste
SM-RC100TSF
MODLE SM-RC65TS (F) SM-RC85TS (F) SM-RC100TS (F) SM-RC120TS (F)
Material PP / PE Film EPS PP / PE Film EPS PP / PE Film EPS PP / PE Film EPS
Output (Kg / Hr) 35 - 60 20 - 30 80 - 120 30 - 40 100 - 200 40 - 60 150 - 300 60 - 80
Extruder Main-extruder Sub-extruder Main-extruder Sub-extruder Main-extruder Sub-extruder Main-extruder Sub-extruder
Screw Diameter 65 mm ψ 65 mm ψ 85 mm ψ 85 mm ψ 100 mm ψ 100 mm ψ 120 mm ψ 120 mm ψ
Screw Rotation 10 - 100 10 - 100 10 - 100 10 - 100 10 - 100 10 - 100 10 - 100 10 - 100
L/D Ratio 32 : 1 10 : 1 32 : 1 10 : 1 30 : 1 10 : 1 30 : 1 10 : 1
Driving Motor 25 HP VS 7.5 HP VS 25 HP 10 HP VS 40 HP 15 HP VS 60 HP VS 20 HP VS
Heating Zone 5 3 6 3 7 4 8 4
Heating Capacity 20 KW 9.5 KW 28 KW

9.5 KW

40 KW 10 KW 45 KW 15 KW
Speed Range Stepless 2 Step Stepless 2 Step Stepless 2 Step Stepless
Force Feeder 3 HP VS   3 HP VS   5 HP VS   5 HP VS
Vent Equipment 1 Set   1 Set   1 Set   1 Set
Die Hydraulic Screen Changer For Both Die
Hydraulic Motor 3 HP   5 HP   5 HP   5 HP
Heating Capacity 5 KW 4 KW 8 KW 7.5 KW 9.5 KW 8.5 KW 10.5 KW 9.5 KW
Cooling Unit Water Bath (Stainless Steel)
Dryer 1/4 HP 1/4 HP 1/4 HP
Cutting Unit Motor 3 HP VS 3 HP VS 5 HP VS 7-1/2 HP VS
Floor Dimension 8.5 × 1.8 × 1.8 (M) 9.7 × 1.8 × 1.8 (M) 11.1 × 2.0 × 1.8 (M) 11.3 × 2.1 × 1.8 (M)
Machine Weight 3000 kgs 3400 kgs 4200 kgs 5000 kgs

Specifications are subject to change without notice for improvement.
This mach ine is especially designed for processing substandard waste PP, PE Blown film, PP/HDPE FLAT YARN and ABS, 475. EPS sheet into plastic granule.

Esta recicladora es diseñar para recuperar las peliculas plasticos como PP, PE pelicula abandonados, PP/HDPE RAFIA y laminas de PS, ABS, 475, EPS para granularlo a resina.
