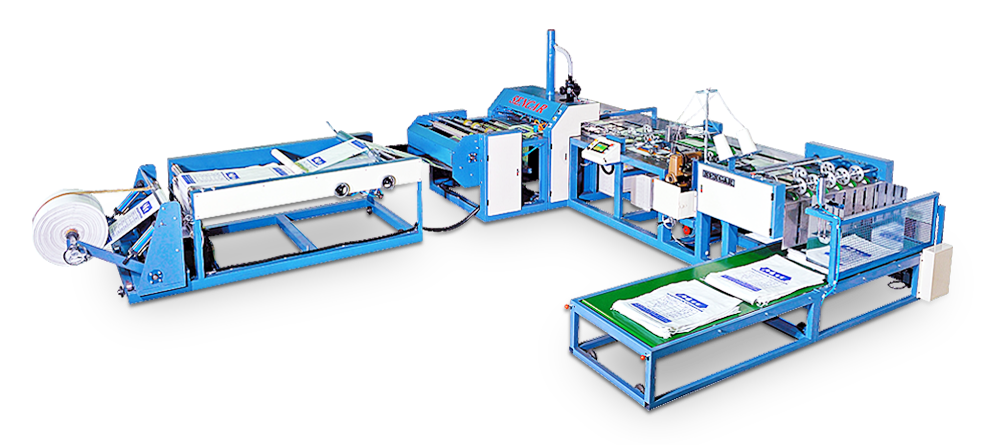

Automatic Woven-bag Cutting and Sewing Machine
GSM-2009
Automatic Woven-bag Cutting and Sewing Machine
Automatic Woven-bag Cutting and Sewing MachineAutomatic Woven-bag Cutting and Sewing Machine
Major Specification
Diameter of Unwinding Cloth 1400 mm Maximum Applicable
Width of Unwinding 300 - 860 mm Applicable
Cutting Length 450 -1250 mm Adjustable
Production Output 32 -45 bag / munute
Sewing Unit New Long DKN - 3BP (450 rpm)
Length Accuracy Witin ± 1 mm Range
Cutting Knife High Quality Alloy Steel Cutter With Tubular Heater

Bag Size Gusset Device
Bag Width Before Gusset 480 mm - 860 mm
Bag Widdth After Gusset 380 mm - 760 mm
Gusset Depth 50 mm - 100 mm
