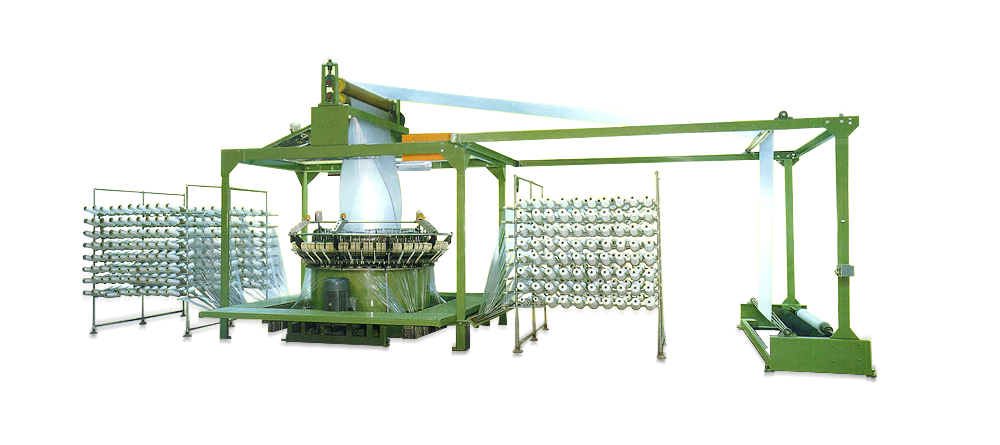

SPECIFICATION	MODLE		SM 6/1500
Working Ability	Shuttle Speed	RPM	90 -110
	Nos. Of Shuttle	Set	6
	Weft Inserting Speed	RPM	540 - 660
	Weft Density	P / Inch	8 - 16
	Lay Flat Width	MM	950 - 1400
Weft Package Size	Weft Tube	MM	ID (23 - 28) ψ
	Maximum Weft Package	MM	ψ100
	Warp Tube	MM	ID (23 - 28) ψ
	Warp Creel	Bobbin	1280
Cloth Winder	Maximum Winder Roller Width	MM	1500 Standard 3000 Extra
	Take Up Driving		Gear Transmission
	Torque Motor	KG	15 KG-CM
Power	Main Motor 3P	KW	5.5 (7.5 HP × 8P. Y - △)
	Fan Motor 3P	KW	1 HP
Layout & Packing	Dimension L × W × H	M	12.6 × 3.25 × 3.6
	Packing G.W.	MT	4.8

Specifications are subject to change for improvement without notice.
Optional device available upon request:
1. SM 6/1500 Extra winder for 3000 width with center open device.
                    Extra winder for 1500 width with side edge open device.
2. Gusset device.

Tubular flat width up to 1500 mm, center open device for 3000 mm is available for converting into tarpaulin cloth. Two side edge open device for making cement / chemical bag (3 in 1 coating fabric for converting into cement / chemical value bag ). This kind of light fabric has advantage for its construction and smooth surface for improving speed of feeding into tube bag making line reducing minimum loss.
